CDSR provides a range of high quality, high performance, oil suction and discharge hoses, which fully comply with the requirements of the “Guide to Manufacturing and Purchasing Hoses for Offshore Moorings” (GMPHOM 2009). The CDSR Loading & Discharge Hoses are available with rated working pressures of 15 bar, 19 bar and 21 bar or higher for special applications or specific client requirements. Two distinctive designs within the CDSR hose range are available:
• CDSR Single Carcass Hoses (CY51 Series) Floating, Submarine & Catenary Hoses
• CDSR Double Carcass Hoses (CY52 Series) Floating, Submarine & Catenary Hoses
The CDSR Single Carcass Hose construction consists of three main elements:
(1) smooth bore elastomeric lining resistant to a variety of hydrocarbons；
(2) a standard elastomer reinforced carcass with multi-layers of high tensile textile cords and embedded steel wire helix；
(3) a fibre reinforced smooth elastomer cover, resistant to ageing, abrasion, weathering, sunlight, tearing, oil and seawater penetration.
In addition to the standard hose carcass (commonly termed ‘primary carcass’), the CDSR Double Carcass Hose incorporate an additional second carcass designed to contain any product escaping from the primary carcass as a result of a slow leak or sudden failure. An effective, robust and reliable, integrated leak detection and indication system is provided.
The CDSR Single Carcass and Double Carcass hose range is complemented by a comprehensive range of Ancillary Equipment.
Product Description
The CDSR Single Carcass and Double Carcass Floating Hoses are designed for high integrity surface installations such as EPS, SBM, CALM, SALM offloading in addition to FPSO, FSO Tandem offloading configurations.
The CDSR Single Carcass and Double Carcass Submarine Hoses are designed for high integrity sub-sea installations such as MBM, CALM, SALM configurations (i.e. Steep ‘S’, Lazy ‘S’, Chinese Lantern).
The CDSR Single Carcass and Double Carcass Catenary Hoses are designed for high integrity floating offloading installations such as FPSO, FSO tandem offloading to DP Shuttle Tankers (i.e. Reel, Chute, Cantilever hang-off arrangements).
The CDSR Single Carcass and Double Carcass hose range is complemented by a comprehensive range of Ancillary Equipment.
Product Description
The CDSR Single Carcass and Double Carcass Floating Hoses are designed for high integrity surface installations such as EPS, SBM, CALM, SALM offloading in addition to FPSO, FSO Tandem offloading configurations.

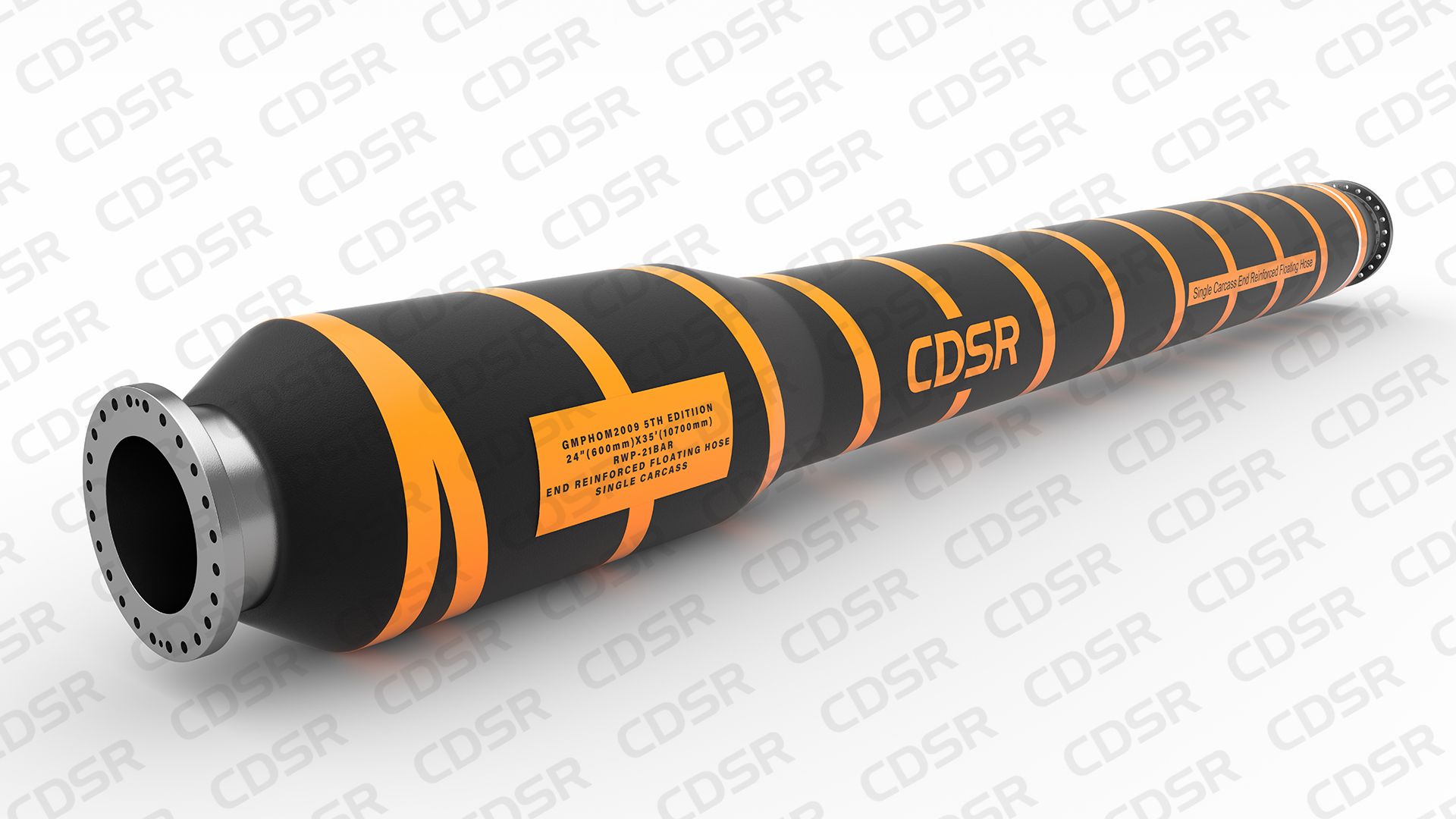

CDSR Single Carcass End Reinforced Floating Hose

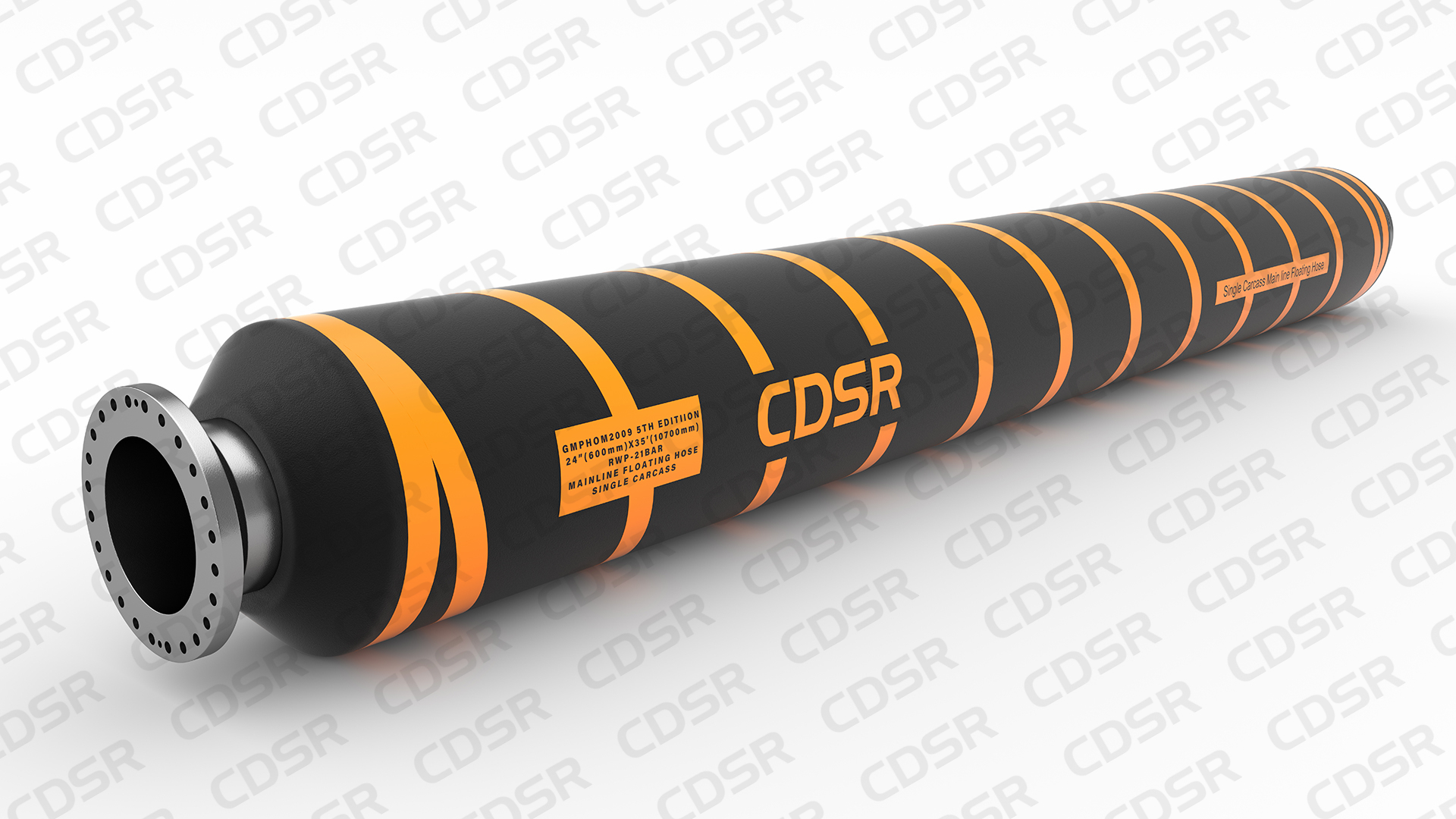

CDSR Single Carcass Mainline Floating Hose
CDSR Single Carcass Reducer Floating Hose
CDSR Single Carcass Tail Floating Hose
CDSR Single Carcass Tanker Rail Hose
Product Description
- CDSR hoses fully comply with the requirements of the “GMPHOM 2009”.
- CDSR hoses are designed and manufactured under a quality system in accordance with ISO 9001.
- Prototype Hose manufacture and testing witnessed and verified by Bureau Veritas and DNV.
